What we offer in Machining
Aluminum Extrusion, CNC Machining, Prototyping, Mold & Die Making, Mechanical & Electronic Assembly
Instruments

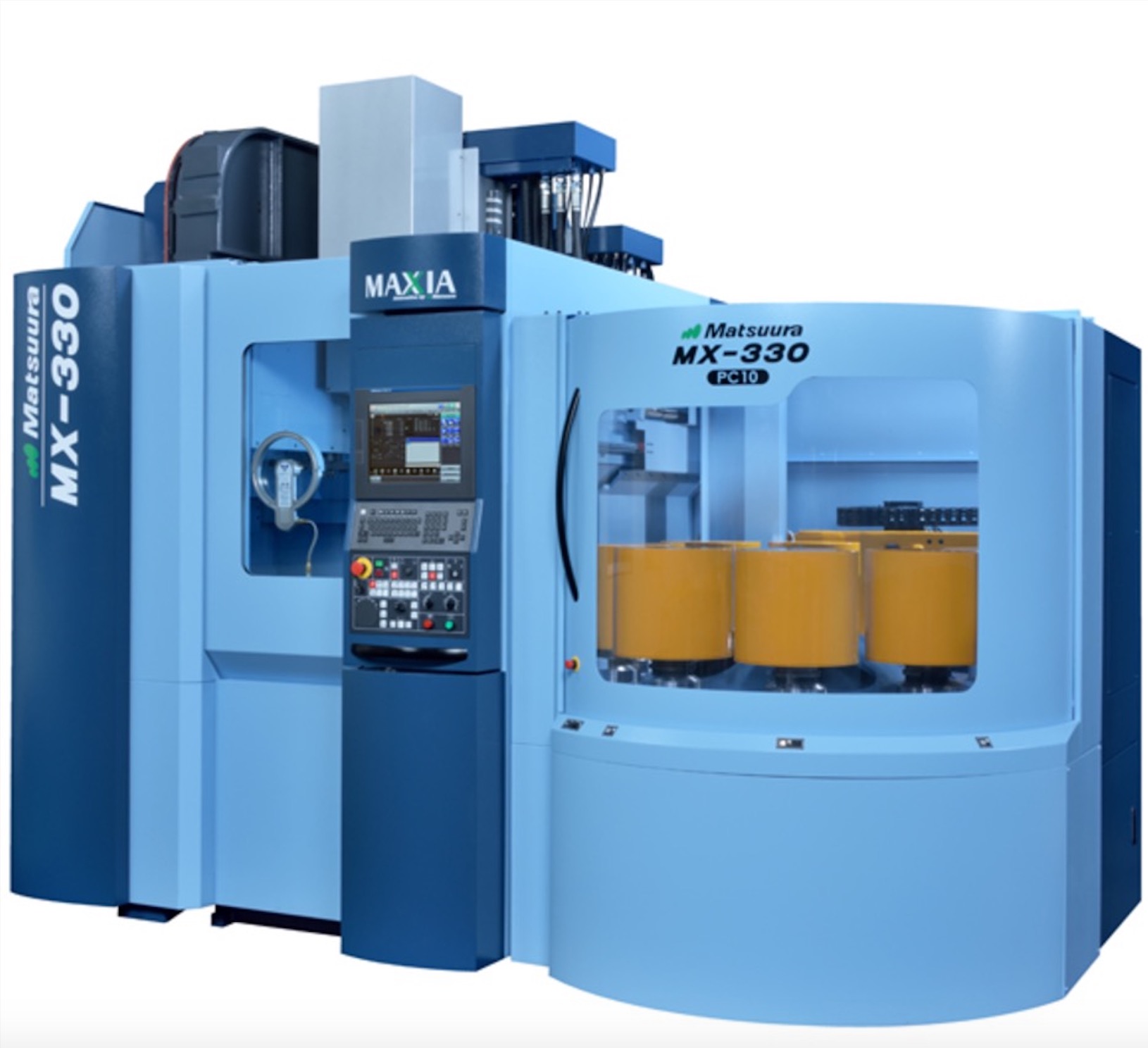

Matsuura MX-330
MACHINE CHARACTERISTICS:
Maximum work size: 12.99” Diameter × 12.60” Height
Loading Capacity: 176.37 lbs
Travel (X/Y/Z): (17.13/18.31/22.05)
Travel（A/C): -125～+10/360
Working Surface：: 9.84” Diameter
Spindle Speed: 15 000RPM
Number of tools: 60
Number of Pallets: 10

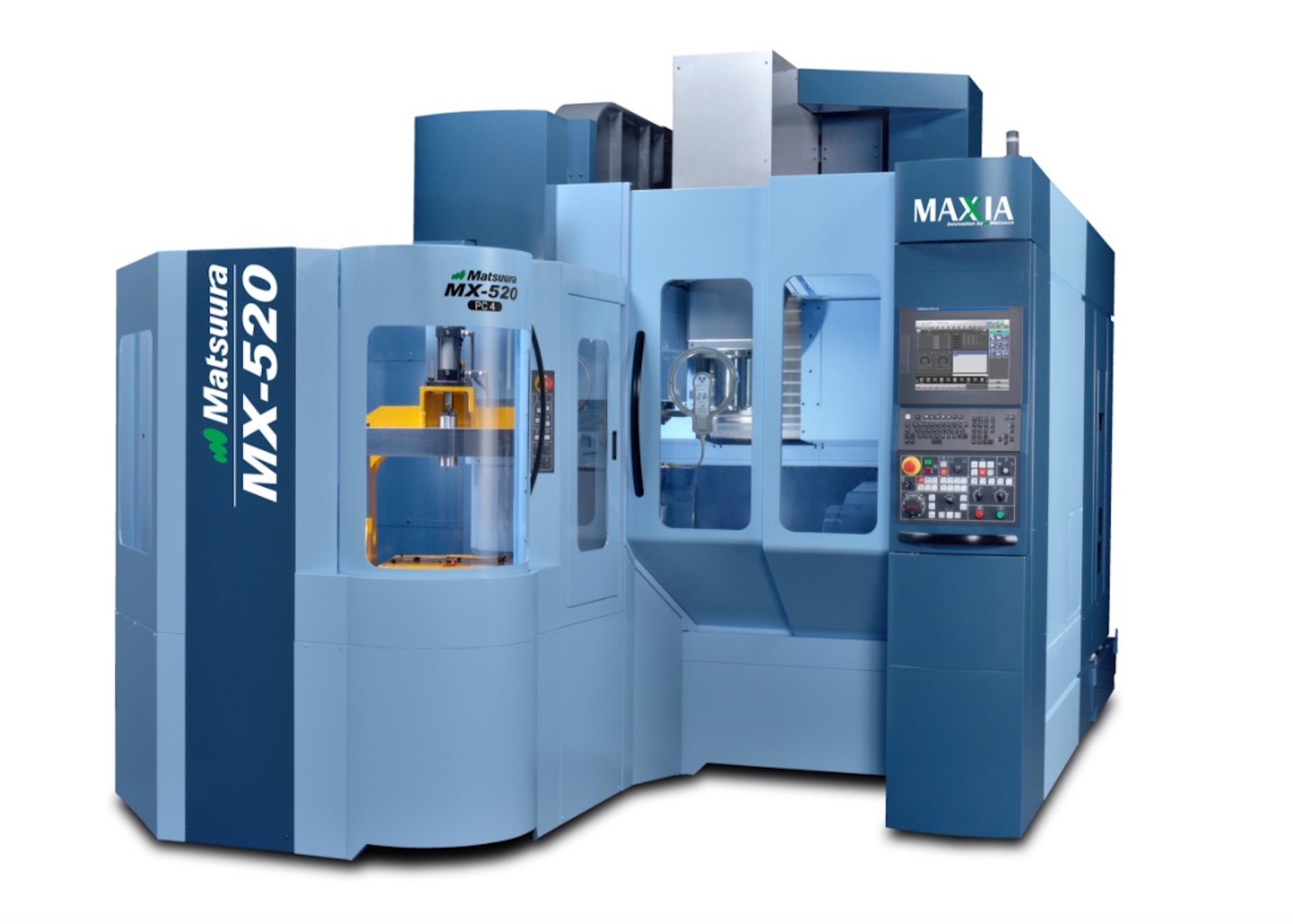

Matsuura MX-520
MACHINE CHARACTERISTICS:
Maximum work size: 20.47” Diameter × 13.77” Height
Loading Capacity: 440 lbs
Travel (X/Y/Z): (24.80/22.04/20.07)
Travel（A/C): -125～+10/360
Working Surface: 11.81” Diameter
Spindle Speed: 12 000RPM
Number of tools: 90
Number of Pallets: 4

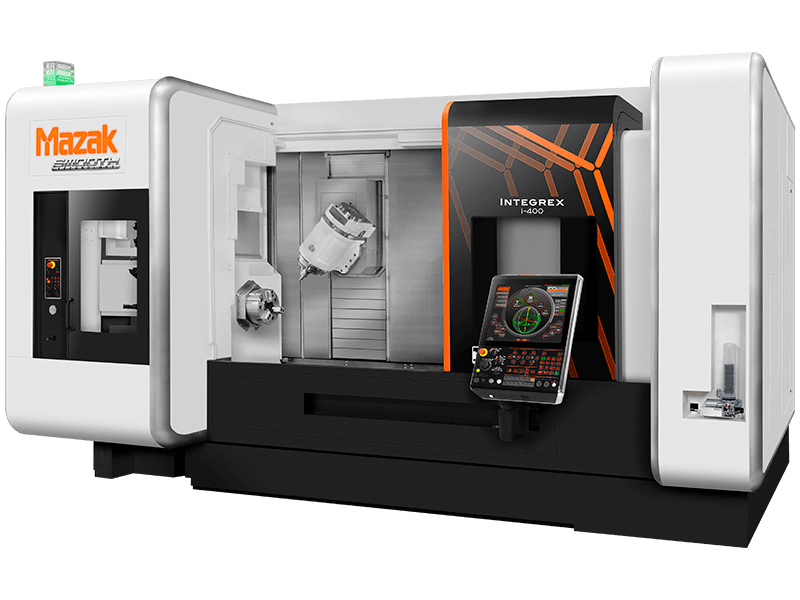

INTEGREX i-400
MACHINE CHARACTERISTICS:
Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
Optional 20k RPM (15 HP) milling spindle available
Programmable NC tailstock
Full C-axis contouring (.0001 degree minimum index)
Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
36-tool ATC standard ( HSK A63 ) - 72 or 110 tool options available
Multiple bed lengths available: 40", 60"
MAZATROL SmoothX CNC provides fast processing speeds

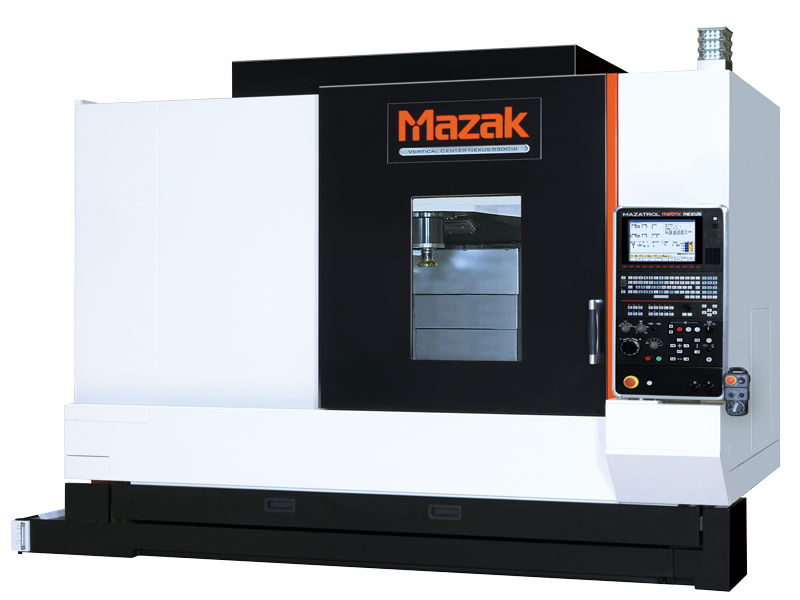

NEXUS 530C-II HS
MACHINE CHARACTERISTICS:
Performance enhancing Intelligent Machine features
MX Hybrid Roller Guide Technology on all axes
Ergonomic control swings for easy operator viewing
High accuracy and productivity for a variety of industry applications
Easy integration of articulated robots for process automation

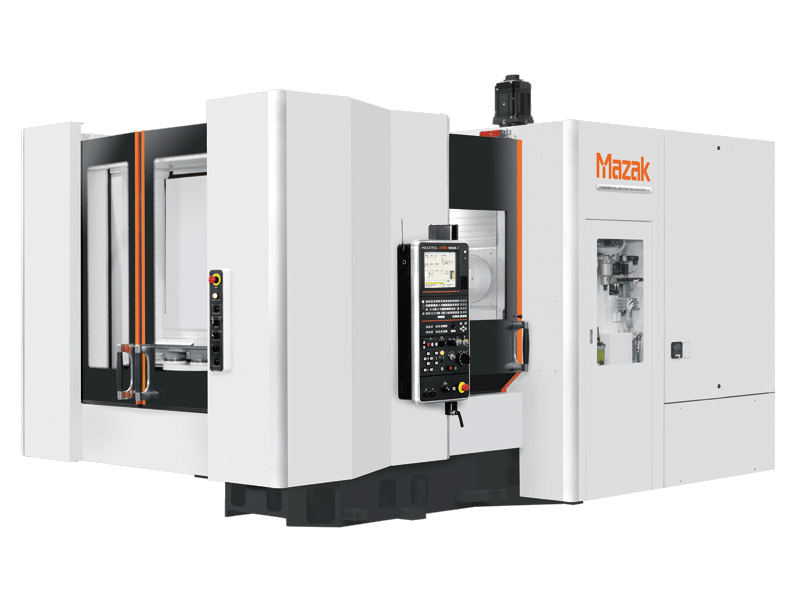

NEXUS 4000-III
MACHINE CHARACTERISTICS:
High-speed, high-accuracy positioning for reductions in non-cut times
Wide range of available spindle speeds and power options
Fast, vibration-free machine acceleration/deceleration
Ample Y-axis stroke
High stability, vibration-dampening machine construction
Variety of available tool magazine capacities
Standard two-pallet changer
Automation ready for Mazak's PALLETECH System
MAZATROL SmoothG CNC provides fast processing speeds

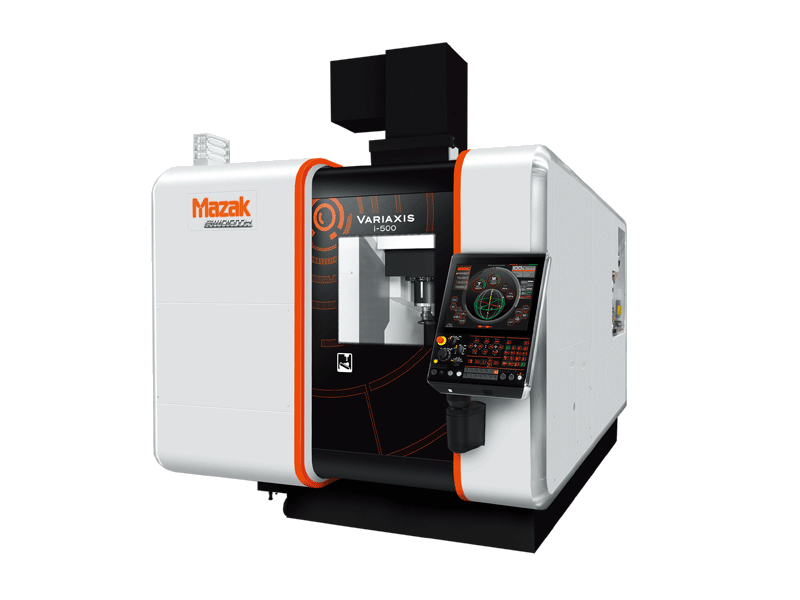

VARIAXIS i-500
MACHINE CHARACTERISTICS:
DONE IN ONE capability
Wide range of spindle speeds available for exceptional versatility
Reliable cam-driven tool changer offers higher productivity
Tool storage capacities up to 120 tools
High-rigidity table with roller gear cams eliminate backlash to ensure accuracy
MX Hybrid Roller Guide System offers durability and reliability for long-term accuracy
MAZATROL SmoothX CNC provides fast processing speeds
QUICK TURN SMART 300M
MACHINE CHARACTERISTICS:
High powered, integrated spindle/motor
User-friendly SMART CNC
CNC programmable tailstock
Through-hole chuck packages
Environmentally smart design
Tool Eye for automatic tool measurement and compensation
Easy integration of bar feeders and gantry robots for unmanned operation

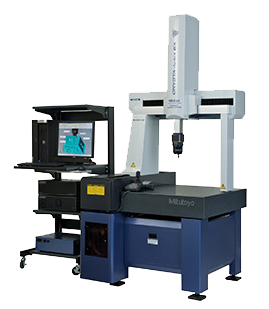

CMM Mitutoyo Crysta-Apex C7106
MACHINE CHARACTERISTICS:
Length standard - Linear encoder
Guide system - Air bearing
Max. Drive speed (3D) - 20.47" (520mm)/second
Max. Acceleration - 0.23G (500, 700,106,9166,9206 Series)
0.17G (9108, 9168, 9208, 1200 Series)
Air pressure - 0.4MPa
Air consumption - 50L/min (500 series)
60L/min (700, 900 series)
100L/min (1200 series)

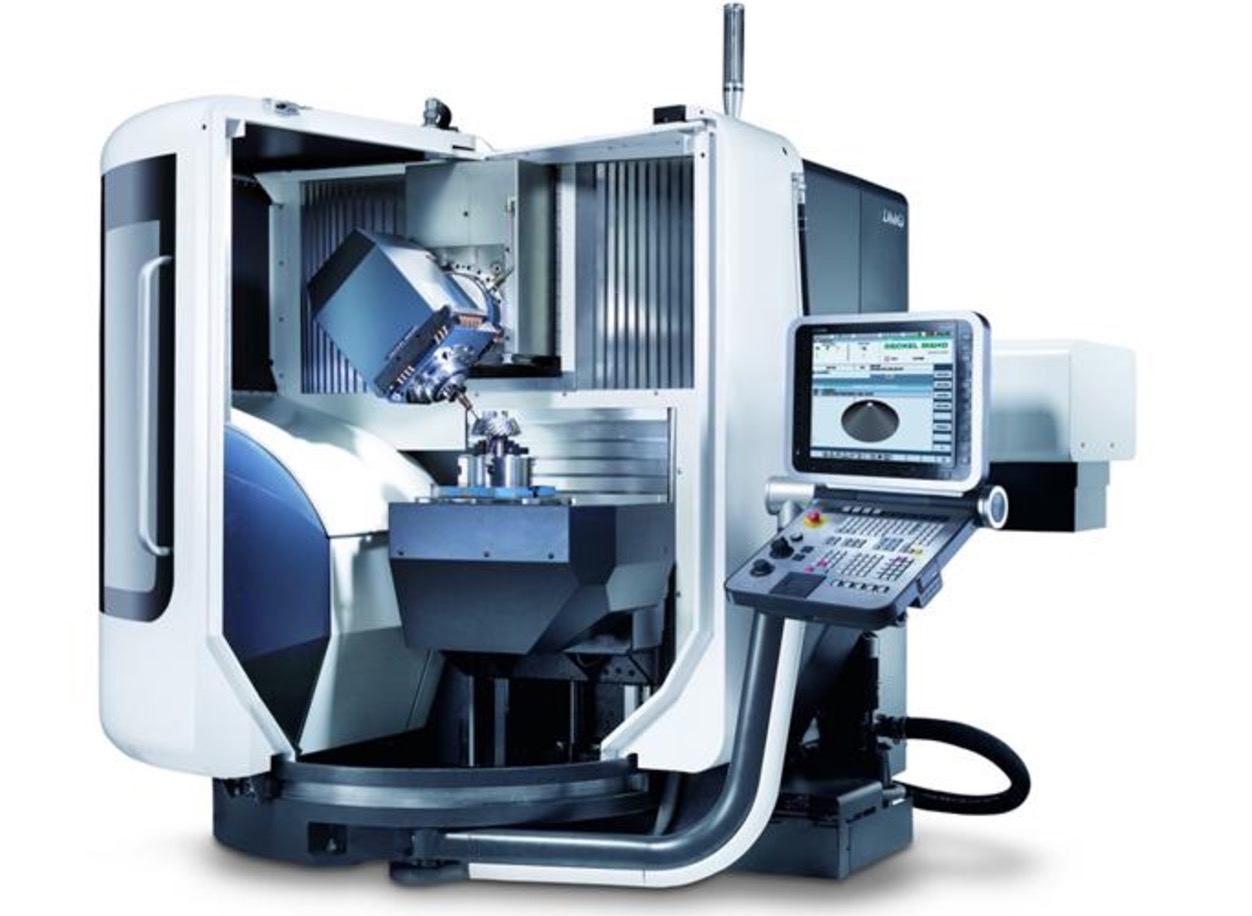

DMG Monoblock DMU 60
MACHINE CHARACTERISTICS:
X Travel: 24.8”
Y Travel: 22”
Z Travel: 22”
RPM: 12 000

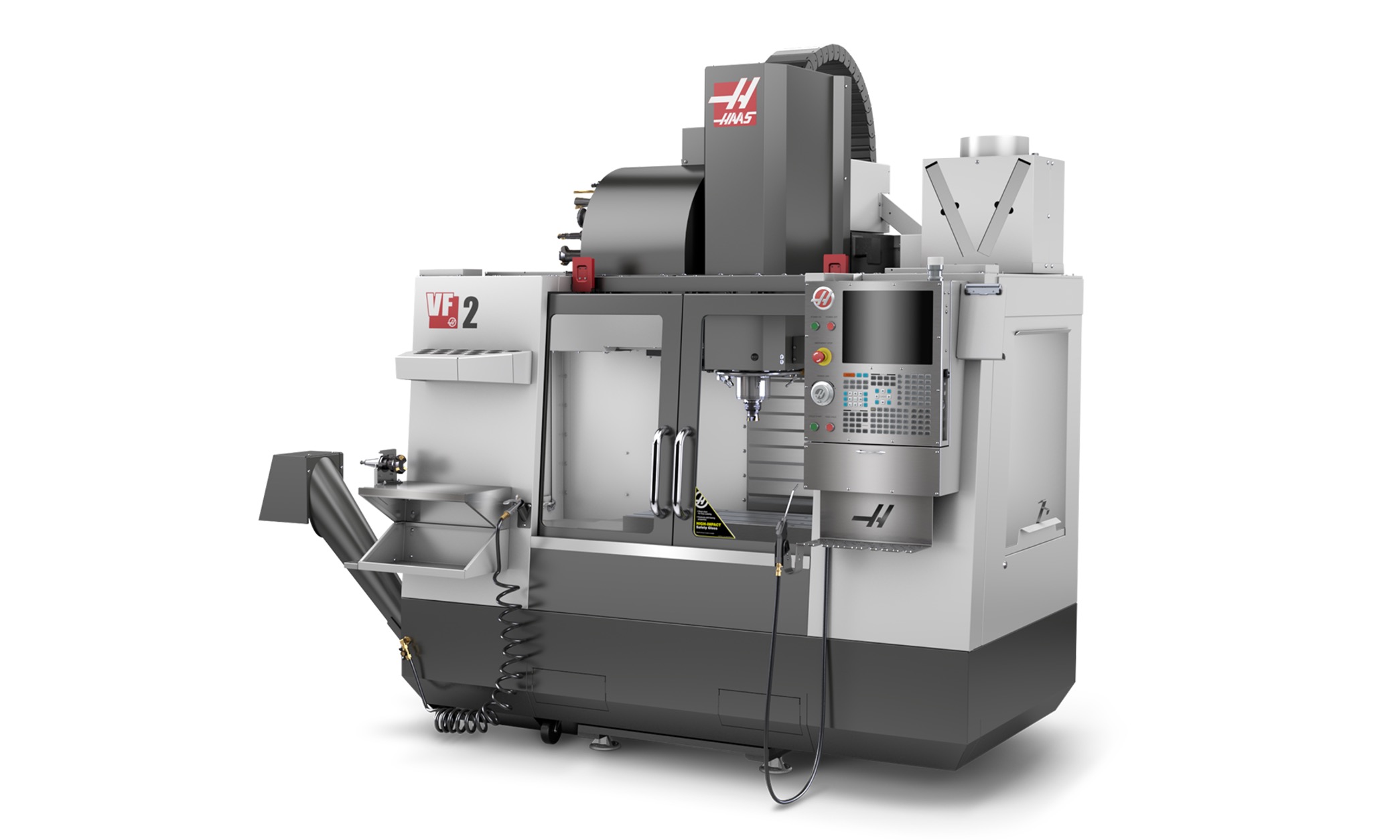

Haas VF2 & Haas VF2-SS
MACHINE CHARACTERISTICS:
X Travel: 30” (VF2) 30” (VF2-SS)
Y Travel: 16” (VF2) 16” (VF2-SS)
Z Travel: 20” (VF2) 20” (VF2-SS)
RPM: 7500 (VF2) 12000 (VF2-SS)
